AMD RYZEN 7 5700G + GIGABYTE A520I AC Motherboard

The product is brand new – with a three-year warranty

The battery in the motherboard picture will be removed before shipment, because the use of battery is prohibited in China Post and Customs

Send Model

CPU Model：AMD Ryzen 7 5700G

RAMs Model: Asgard TUF Joint Model DDR4 (8G*2) 3200 MHz

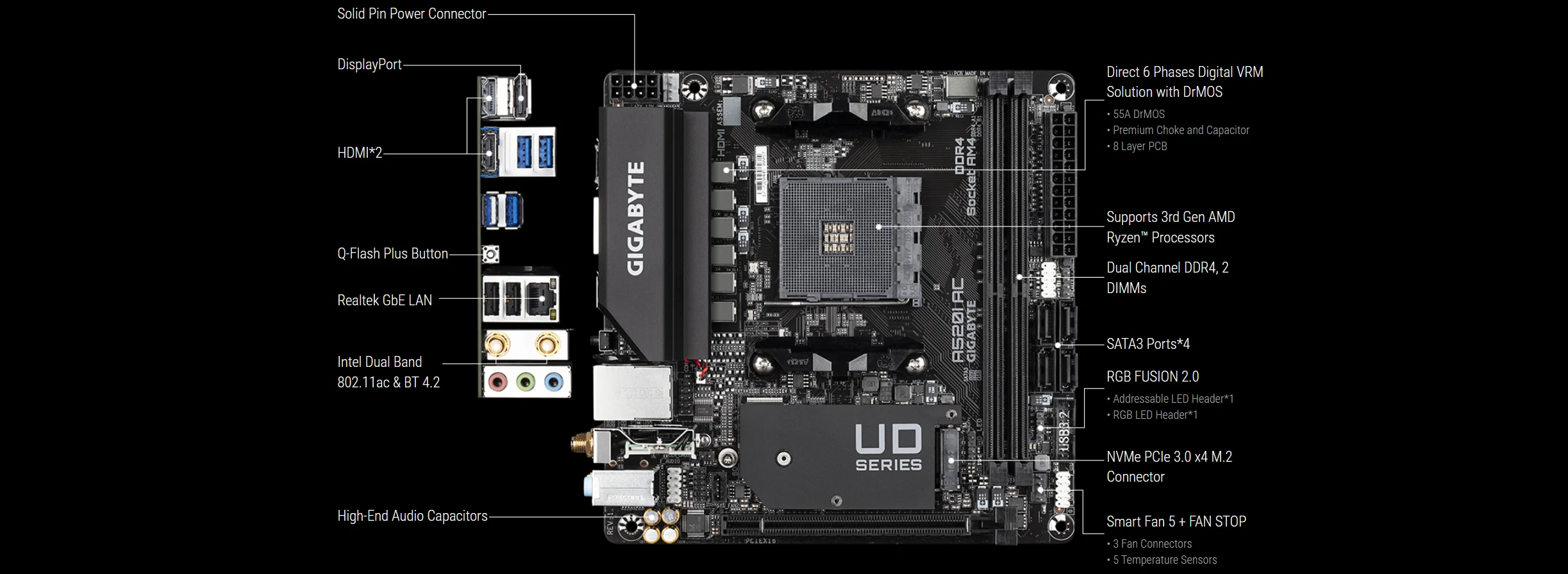

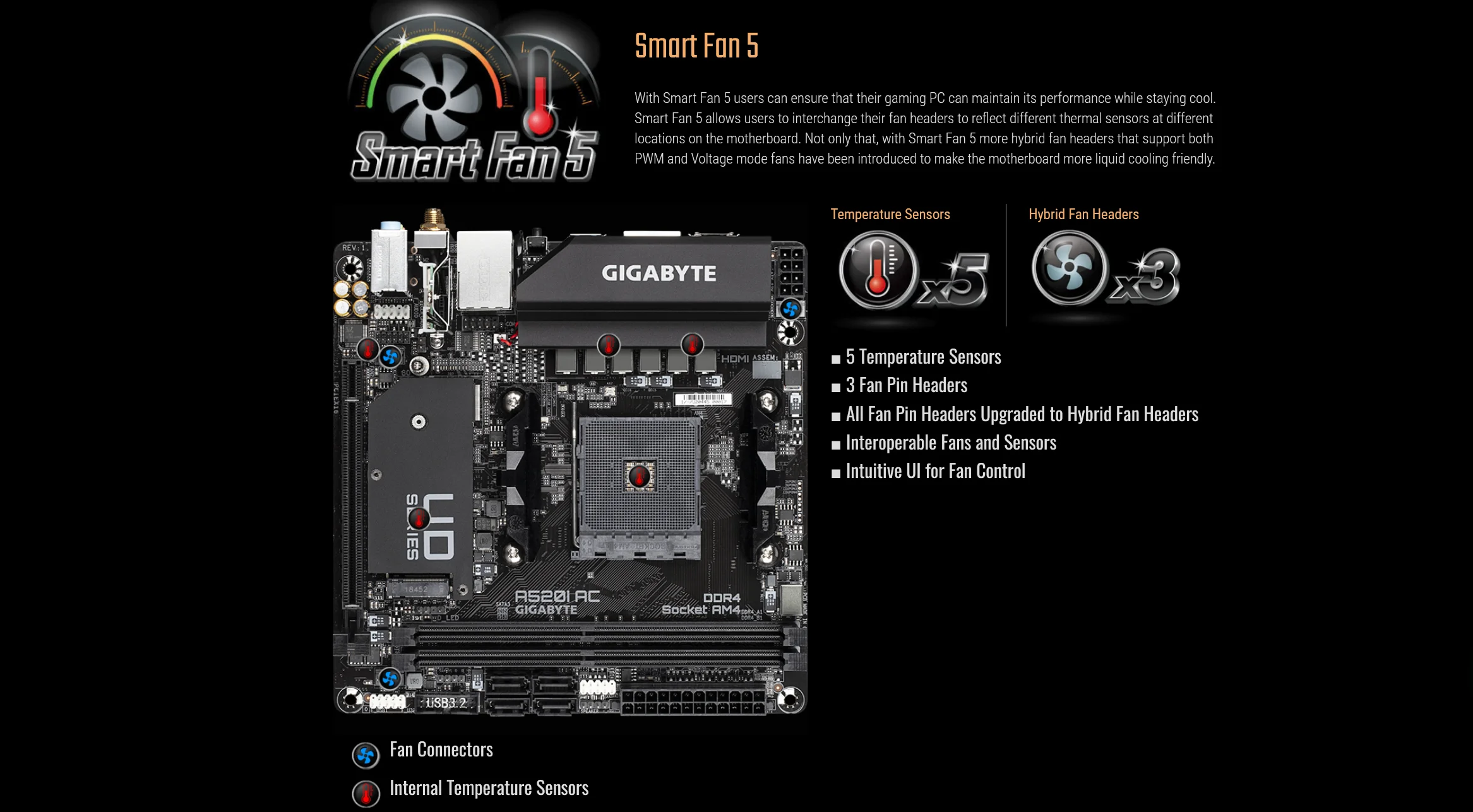

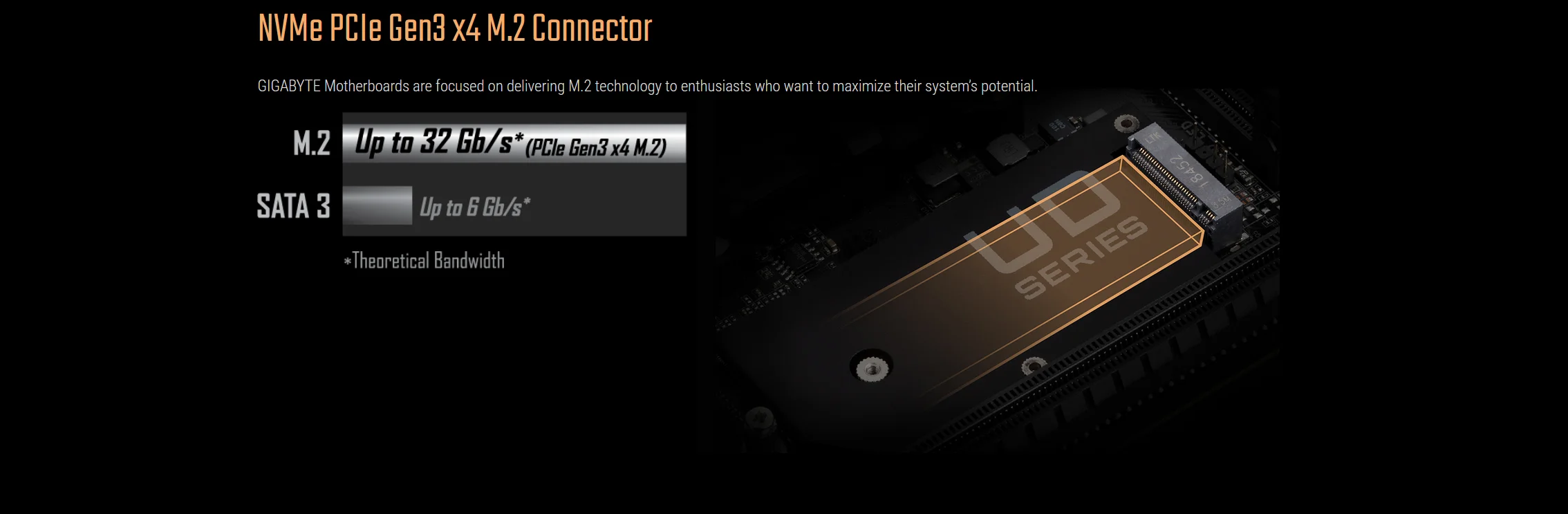

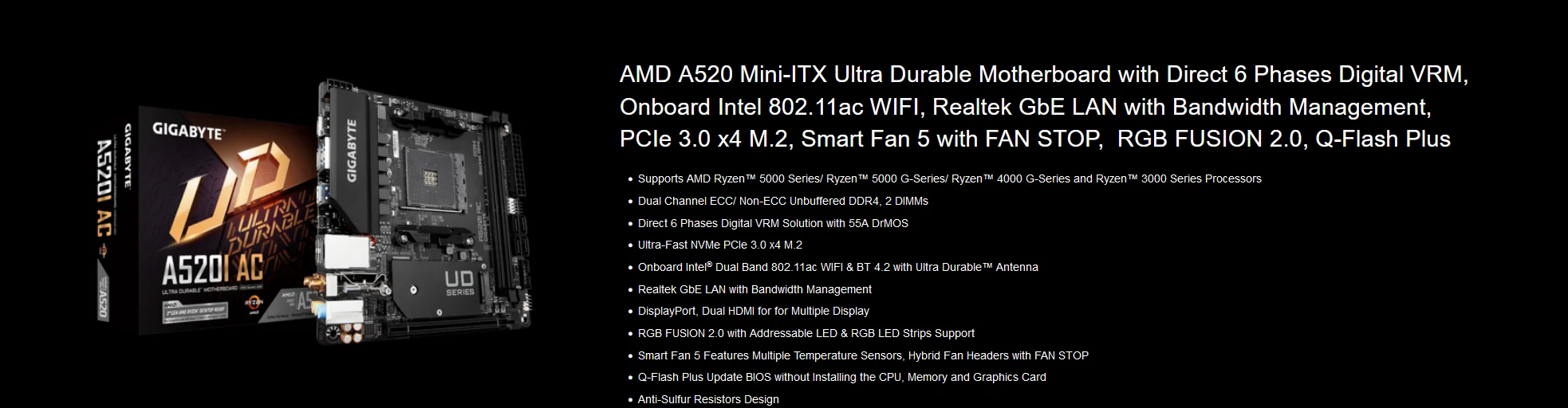

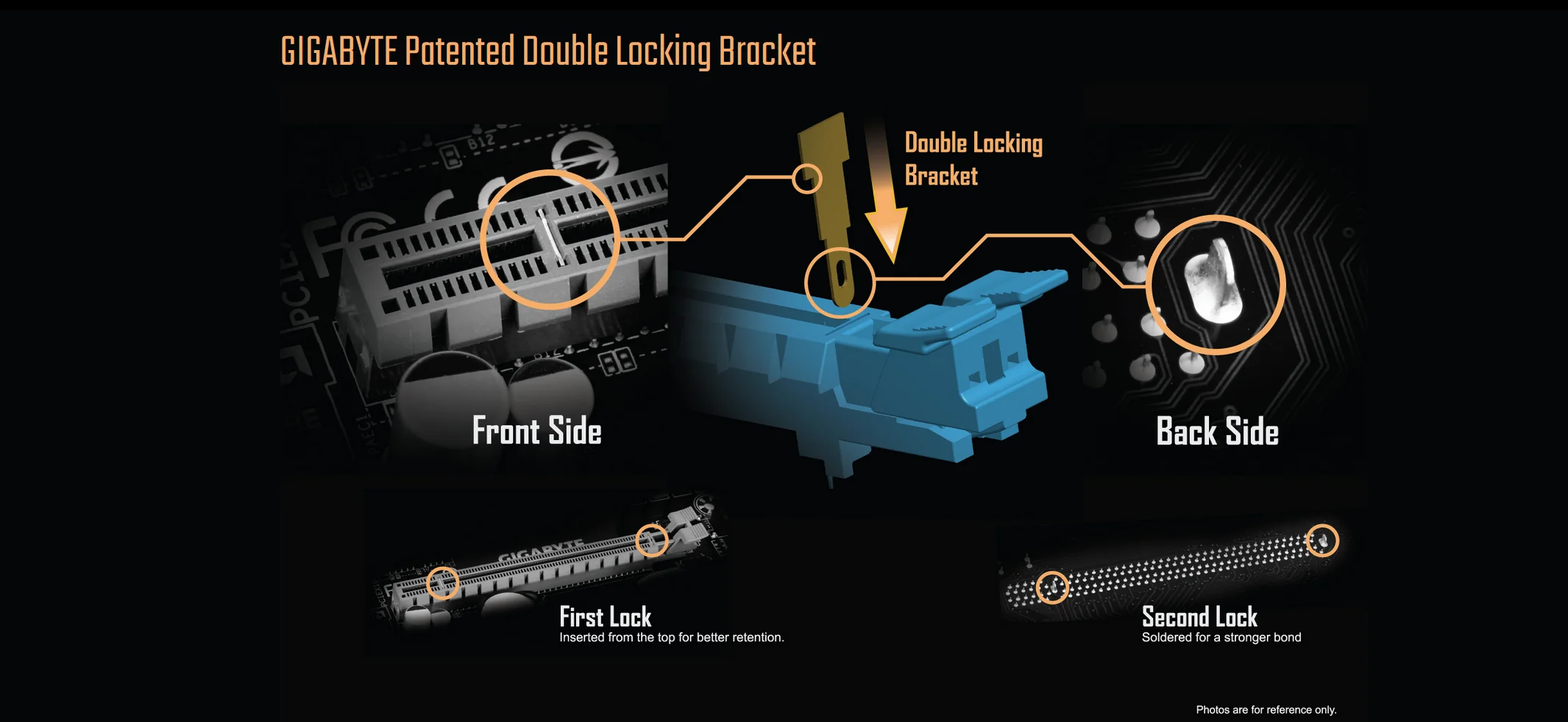

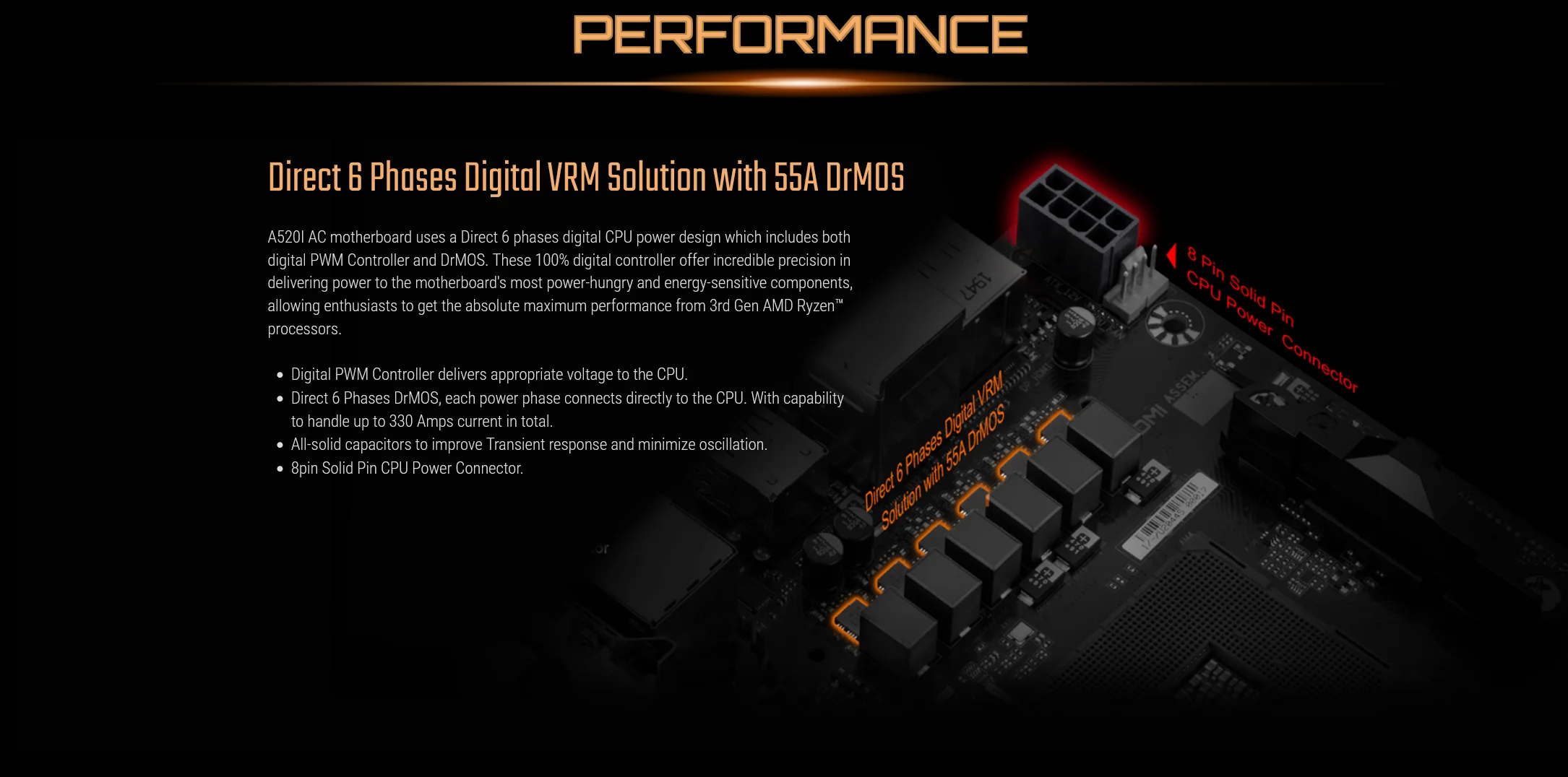

Motherboard Model: GIGABYTE A520I AC (Mini-ITX)

AMD Ryzen 7 5700G specifications

These specs can be used for short-term
listings on auction and classifieds sites

Click on this icon in the specs area
for more details and related links

General information
Type	CPU / Microprocessor
Market segment	Desktop
Family	AMD Ryzen 7
Model number  ?	5700G
CPU part numbers	100-000000263 is an OEM/tray microprocessor 100-100000263BOX is a boxed microprocessor
Frequency  ?	3.8 GHz / 3800 MHz
Maximum turbo frequency	4.6 GHz / 4600 MHz
Package	1331-pin lidded micro-PGA package
Socket	Socket AM4
Size	1.57″ x 1.57″ / 4cm x 4cm
Introduction date	April 13, 2021 (OEM processors) August 5, 2021 (Retail processors)
Price at introduction	$359 (price at retail product launch)
Architecture / Microarchitecture
Instruction set	x86
Microarchitecture	Zen 3
Processor core  ?	Cezanne
CPUID	A50F00
Manufacturing process	TSMC 0.007 micron FinFET process
Data width	64 bit
The number of CPU cores	8
The number of threads	16
Floating Point Unit	Integrated
Level 1 cache size  ?	8 x 32 KB 8-way set associative instruction caches 8 x 32 KB 8-way set associative data caches
Level 2 cache size  ?	8 x 512 KB 8-way set associative unified caches
Level 3 cache size	16 MB 16-way set associative shared cache
Multiprocessing	Uniprocessor
Extensions & Technologies	MMX instructions Extensions to MMX SSE / Streaming SIMD Extensions SSE2 / Streaming SIMD Extensions 2 SSE3 / Streaming SIMD Extensions 3 SSSE3 / Supplemental Streaming SIMD Extensions 3 SSE4 / SSE4.1 + SSE4.2 / Streaming SIMD Extensions 4  ?  SSE4a  ?  AES / Advanced Encryption Standard instructions AVX / Advanced Vector Extensions AVX2 / Advanced Vector Extensions 2.0 BMI / BMI1 + BMI2 / Bit Manipulation instructions F16C / 16-bit Floating-Point conversion instructions FMA3 / 3-operand Fused Multiply-Add instructions SHA / Secure Hash Algorithm extensions AMD64 / AMD 64-bit technology  ?  SMT / Simultaneous MultiThreading AMD-V / AMD Virtualization technology Precision Boost 2
Security Features	EVP / Enhanced Virus Protection  ?
Low power features	Pure Power
Integrated Graphics Processing Unit
GPU Type	Radeon
Microarchitecture	Vega
Shader cores	512
Maximum frequency (MHz)	2000
Integrated peripherals / components
Display controller	DisplayPort / HDMI
Memory controller	Memory channels (total): 2 Supported memory: DDR4-3200
Other peripherals	PCI Express 3.0 interface (16 lanes [1])
Electrical / Thermal parameters
Maximum operating temperature  ?	95°C
Thermal Design Power  ?	65 Watt
Notes on AMD Ryzen 7 5700G
The processor has unlocked clock multiplier Boxed processor comes with Wraith Stealth fan/heatsink [1] – Information is not confirmed
