ASRock WRX80 CREATOR Motherboard USB 3.2 SATA3 DDR4 M.2 7.1 Channel Placa-Mãe supports Ryzen Threadripper PRO 5000WXMainboard


-ASROCK front C-type USB 3.2 Gen2 pin (10 Gb/s)

-ASROCK USB 3.2 Gen2 Type A interface (10 Gb/s)

ASROCK Superalloy

-Superalloy radiator

-Advanced inductance

– 105A Dr.MOS

-Nichicon 12k black capacitor (Japanese original high-quality high-conductivity solid-state capacitor)

-Black matte PCB

-High-density moisture-proof fiber circuit board

– 14 Layer PCB

-2 oz copper PCB

Server-level low loss PCB

10 Gigabit network

802.11ax Wi-Fi 6E

Huaqing alloy slot

Huaqing M.2 thermal armor

Huaqing Super M.2 (PCIe Gen4x4)

Huaqing Super Stable USB Power Supply

Huaqing full protection (supporting all USB, audio source and network interfaces)

Huaqing Instant Update&Application Market


– AMD Ryzen ™ Threadripper ™ PRO 5000WX and 3000WX series processors support the use of AMD slot sWRX8

-Intersil digital power controller

-Support Huaqing B+turbine chip III




-Eight-channel DDR4 memory technology

-8 x DDR4 memory slots

-Support DDR4 ECC&(non ECC), buffered and un-buffered memory (U-DIMM) up to 4533+(OC)*

-Support DDR4 3200/2933/2667/2400/2133 ECC&(non ECC), buffered and un-buffered memory (R-DIMM and 3DS R-DIMM)*

-Maximum system memory capacity: 2048 GB

-DIMM slot adopts 15 μ Gold-plated connector

*Native support for DDR4 3200


-256Mb AMI UEFI Legal BIOS with graphical interface

-Support for “plug and play”

-ACPI 5.1 compliant, support Wake Up Events

-Jumper-free support

-Support SMBIOS 2.3

– CPU, CPU VDDCR_ SOC, DRAM, VPPM, PREM VDD_ CLDO, PERM VDDCR_ SOC,+1.8V, VDDP voltage multi-function regulator

On-board video card

-Speed AST2500 BMC controller

-D-Sub support, maximum resolution 1920×1200 @ 60Hz

Sound effect

-7.1 channel high fidelity audio (Realtek ALC4050H+ALC1220)

-Support high-quality Blu-ray sound effect

-Support anti-burst

-NE5532 high-quality earphone on the front panel audio interface (supporting up to 600 ohm headphones)

-Pure power supply

-Direct drive technology

-PCB isolation shield

-Automatic impedance detection of rear sound effect

-Layered wiring of left and right channels

-Gold-plated audio jack

– 15 μ Gold-plated audio interface

-Nahimic Audio


2 x 10 Gigabit network card 100/1000/2500/5000/10000 Mb/s

-Support lightning protection/ESD static protection

-Support Energy Efficient Ethernet 802.3az

-Support PXE 1 x Dedicated IPMI (ASPEED AST2500)

-Support for iKVM and vMedia

wireless network adapter

-802.11ax Wi-Fi 6E module

-Support IEEE 802.11a/b/g/n/ax

-Support dual-band 2×2 160MHz and extended 6GHz band*

-Dual antennas support 2 (transmit) x 2 (receive) diversity technology

-Support Bluetooth+High speed class II

-Support MU-MIMO

*Microsoft ® Windows ® 11 Support Wi-Fi 6E (6GHz bandwidth). The availability will depend on the laws and regulations of different countries and regions. Through Windows ® Upgrades and software updates can be activated (in supported countries).

A 6GHz compatible router is required to obtain the 6E function.

Expansion slot


-7 x PCIe 4.0 x16 slots (PCIE1/PCIE2/PCIE3/PCIE5/PCIE7x16; PCIE4/PCIE6x8)*


-1 x vertical M.2 slot (Key E), supporting Model 2230 WiFi/BT PCIe WiFi module

-VGA PCIe slot with 15 μ Gold-plated connector (PCIE1, PCIE2, PCIE3, PCIE5 and PCIE7)

*Support NVMe SSD power-on



-1 x Super M.2 interface (M2_1, Key M), supporting type 2260/2280/2210 SATA3 6.0 Gb/s&PCIe Gen4x4 (64 Gb/s) modes*


-1 x Super M.2 interface (M2_2, Key M), supporting 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*

-8 x SATA3 6.0 Gb/s interface

-1 x U.2 interface

*Support NVMe SSD power-on

Support Huaqing U.2 kit

Redundant array of independent hard disks (RAID)

-Supports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices

-Support RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices*

*Requires additional M.2 NVMe expansion card s to support RAID 5

On-board interface

-1 x SPI TPM pin

-1 x COM port pin

-1 x Intelligent Platform Management Bus connector

-1 x PSU SMBus pin

-1 x BMC SMBus pin

-1 x Auxiliary Panel pin

-1 x power LED and speaker pin

-1 x RGB LED pin*

-2 x programmable LED contacts**

-1 x CPU fan connector (4-pin)***

-1 x CPU/water pump fan interface (4-pin) (intelligent fan speed control)****

-3 x chassis/water pump fan interface (4-pin) (intelligent fan speed control)*****

-1 x 24-pin ATX power interface (high-density power interface)******

-2 x 8-pin 12V power interface (high-density power interface)

-1 x 6-pin 12V power interface (high-density power interface)

-1 x front-panel audio connector (15 μ Gold-plated audio interface)

-1 x vertical front panel audio connector*******

-1 x USB 2.0 connector (supporting 2 USB 2.0 interfaces) (supporting ESD electrostatic protection)

-2 x USB 3.2 Gen1 pin (support 4 USB 3.2 Gen1 interface) (support ESD electrostatic protection)

-1 x front C-type interface USB 3.2 Gen2 pin (ESD electrostatic protection is supported)

-1 x Non Maskable Interrupt Button pin

-1 x Dr. Debug with LED

-1 x LED power button

-1 x reset button

*Support up to 12V/3A, 36W LED light bar

**Support up to 5V/3A, 15W LED light bar

***The CPU fan interface supports up to 1A (12W) power supply

****CPU/water pump fan supports up to 2A (24W) water-cooled fan.

*****The chassis/water pump fan supports up to 2A (24W) water-cooled fans.

CPU_ FAN2/WP, CHA_ FAN1/WP, CHA_ FAN2/WP and CHA_ FAN3/WP can automatically detect 3-pin or 4-pin fans

******It is recommended to use a PSU with a maximum current of 3A on+5VSB.

*******Connect the audio device to any audio interface

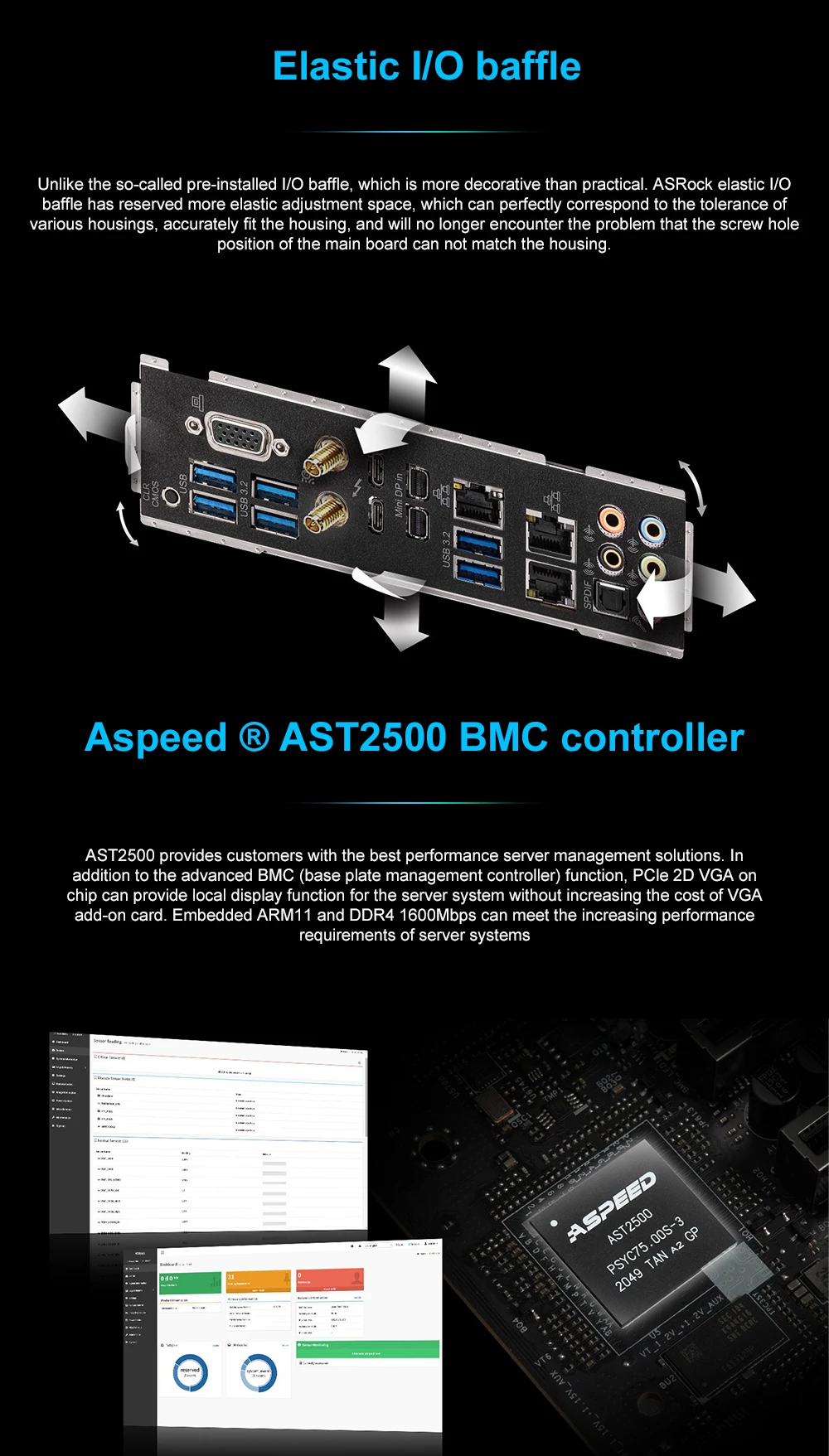

Backboard output/input interface

-2 x antenna ports

-1 x D-Sub interface

-1 x optical SPDIF digital audio output port

– 2 x USB 4.0 Thunderbolt ™ 4 C-type interface (USB 4.0 protocol supports 40 Gb/s; Thunderbolt ™ The protocol supports 40Gb/s) (ESD electrostatic protection is supported)*

-2 x mini display port input port (for Thunderbolt)**

-4 x USB 3.2 Gen2 interface (10 Gb/s) (ESD electrostatic protection supported)***

-2 x USB 3.2 Gen1 interface (support ESD electrostatic protection)

-2 x RJ-45 network card interface LED indicators (ACT/LINK LED and SPEED LED)

-1 x RJ45 Dedicated IPMI LAN interface with LED (ACT/LINK LED and SPEED LED)

-1 x CMOS data clear button

-HD audio jack: rear/center/linear input/front/microphone (gold-plated audio jack)

*Support USB-PD 3.0 9V/3A (27W) and 5V/3A (15W)

**If two mini-display port input ports are used at the same time, please select the conventional mini-display port to display port adapter cable instead of the right-angle cable

***USB31_ 1_ 2 ports support ultra-stable USB power supply

USB31_ 1_ Port 2 does not support ACPI wake-up function.

Software and UEFI



-Huaqing Polychrome SYNC*


-Huaqing Full HD UEFI

-Huaqing Instant Flash (instant update tool)

*These applications can be downloaded from Huaqing Application Market

Random disc

-Driver, application software, antivirus software (trial version)


-Quick installation guide, support CD

-4 x SATA data cable

-1 x Huaqing WiFi 2.4/5/6 GHz antenna

-2 x M.2 slot screws

-Holder for 2 x M.2 slots

Hardware Monitor

-Fan tachometer: CPU, CPU/water pump, chassis/water pump fan

-Mute fan (can automatically adjust the fan speed of the chassis according to the processor temperature): CPU, CPU/water pump, chassis/water pump fan

-Fan multi-speed control: CPU, CPU/water pump, chassis/water pump fan

-Real-time voltage monitoring:+12V,+5V,+3.3V, CPU core, CPU VDDCR_ SOC, DRAM, PREM VDDCR_ SOC, +1.8V


-EATX specification: 12.0-in x 10.7-in, 30.5 cm x 27.2 cm

– 14 Layer PCB

-2 oz copper PCB

operating system

-Support for Microsoft ® Windows 10 64-bit / 11 64-bit



-ErP/EuP support (ErP/EuP support power supply is required)

– CEC Tier II ready

RAID Supported


Processor compatibility

AMD Others

Usage Scenario


Special Function


Back I/O Ports

1x RJ45

Onboard LAN

1x RJ45

Number of M.2


Number of SATA Ports


Storage Interface Type

M.2 (NVMe)

Number of PCI


PCI - E standards

PCI – E 4.0

Support Memory Type


Memory channel




Maximum Ram Capacity


Form Factor


Chipset Manufacturer


With CPU






Socket Type


Brand Name



Mainland China
